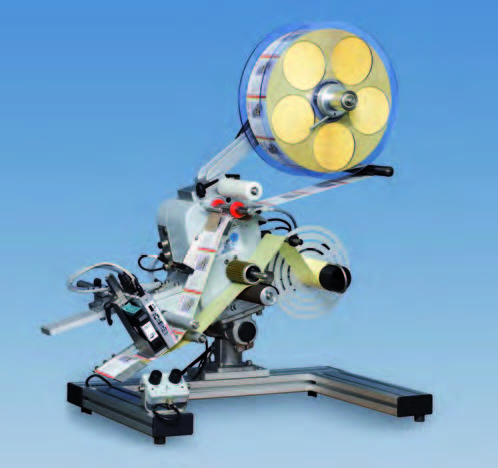

Alpha Compact X1 Jet
The Alpha Compact Inkjet combines the proven and renowned Alpha series labelling system with the compact Markoprint inkjet printer.
This is where the Markoprint Thermo-Inkjet printer, with its new Alpha Compact Inkjet labelling solution, differs: this printer can be removed in a few operations and easily and conveniently installed at different packaging plants, such as blister machines, cartoners, tray packers, pillow bag machines, conveyors or similar units in the final packaging area.
Depending on equipment application, this leads to significantly reduced investment costs and creates multi-functionality. The Markoprint inkjet printer can of course also be integrated into almost any other label dispenser – even other brands – provided the technical prerequisites in terms of installation space are met.
The Alpha Compact Inkjet combines the proven and renowned Alpha series labelling system with the compact Markoprint inkjet printer. With the Alpha Compact Inkjet, variable information is printed, without physical contact, onto possibly pre-printed labels just before dispensing. No labels are wasted/lost when print data changes and previous data are automatically excluded when the product changes.
Place your bets on the Alpha Compact Inkjet with inkjet printer for quality and economy:
- Printing of information such as text, shelf life, barcodes, 2D codes, graphics and logos
- Inputting or amending Print Data is made quick and easy by either entering the data directly or remote input via PC
- Up to 3 000 serializations per minute and 600 dpi resolution, using cartridge printing technology
- Up to 90 m per minute printing speed at 300 dpi resolution
- Integrated and automatic date functions with expiry calculator and serial numbers
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
You must be logged in to access these documents. Register for an account.Markoprint Integra Ultimate
The innovative Integra Ultimate thermal inkjet printer not only provides IP65 protection against dust and moisture, but it also closes and cleans the nozzle plate at each pause. This system ensures that the printing is always clean, with faultless results even after extended breaks. As a result, the ink cartridges’ open times are multiplied many times. Two HP Class thermal inkjet ink cartridges can be used with the print head. As a result, the system produces beautiful prints with a maximum height of 25 mm.
View ProductGeset 125 Horizontal Labelling System
The Geset 125 labelling system is used to label cylindrical products automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage of the labelling system. Care should be taken on accurate alignment of the products between the two freely mounted rollers of the roll conveyor. The side guide’s position the products flush with the outside edge of the roll conveyor.
The roll conveyor feeds the products to the labeller. There the label is applied with the part running forward onto the product and it is pushed by rotation and the back pressure of the wrapping unit onto the product. The back pressure of the wrapping unit (the speed of the wrapping unit is twice as fast as the speed of the base conveyor) enables the product in rotation. The roll conveyor forwards the finished labelled products to the outfeed. Here the products are removed manually or by the customer’s conveying system.
View ProductMarkoprint Shutter Printhead HP
Inkjet nozzles can clog and dry up in a dusty printing environment, which is typical in wood-processing enterprises and other sectors. This results in poorly printed images. Our Markoprint Shutter Printhead HP prevents dust from entering the ink cartridge or gathering on the nozzles. During a production halt, the printhead automatically retracts the cartridge and shuts the open nozzle plate. After being paused for even several days, it is instantly ready to print again.
View ProductMarkoprint ZTV HP
The Markoprint ZTV HP is a Central Ink Supply (CIS) system stores up to 400ml of ink for Markoprint HP Class inkjet printing systems such as the Markoprint integra One, Markoprint X2JET / X4JET, and Markoprint integra Quadro.
The large ink tank prevents frequent cartridge replacements from lowering your Overall Equipment Effectiveness (OEE). It can hold up to four single HP cartridges repaying you rapidly thanks to reduced ink prices. For non-interrupted production, the system can be paired with our NonStopPrinting printhead. Using an interface directly on the cartridge, current ink filling levels are monitored in real time. When the levels in the bulk tank fall below a certain threshold, a valve to the bulk tank opens and automatically refills it.
View Product
