Model 5300 Series Pail/Drum Label Printer-Applicator
The fully-automatic system that quickly and accurately prints and applies labels to pails or drums on the production line.
• Fully automatic pail/drum labelling system
• Ideal for rough production conditions
• High-grade label printing in a single operation
• Prints and applies labels up to 7″ x 14″
• Labels up to 30 products per minute
• Print resolution up to 600 dpi
• All conventional data interfaces
• Service interval display
• Display controller for simple operation
• Easy integration
• CE certification

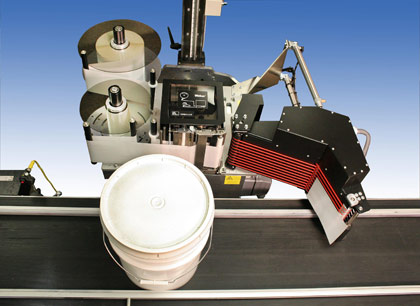

Model 5300 Pail/Drum Label Printer-Applicator
Weber has designed and engineered a unique label printing and application solution that features flexibility, quality and efficiency.
Weber’s Model 5300 Pail/Drum Labelling System quickly and consistently prints and applies perfectly positioned labels to the outer circumference of the product. It optimizes the product identification process to provide a positive impression on consumers, thanks to accurate label placement that ensures strong brand impact. The labels are applied straight and consistent every time.
The system prints top-quality labels up to 7″ x 14″ with very high-resolution text, bar codes and/or graphic images. The durable construction of this unique labelling solution makes it suitable for use in all sorts of production environments.
Pails or drums can be properly labelled even amid changing product identification requirements, and variable products and information can be accommodated without wasting labels. The Model 5300 Pail/Drum Labelling System is versatile enough to communicate via existing data controllers or interfaces.
