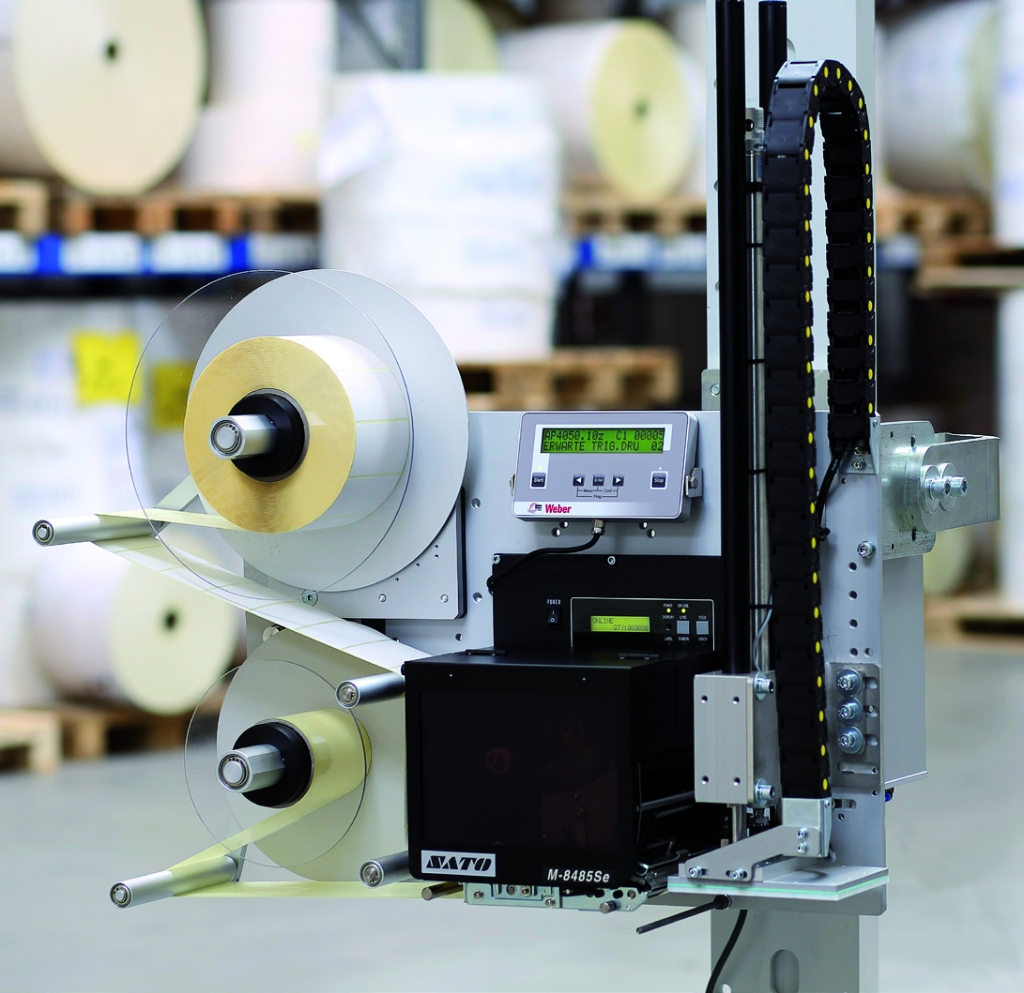

Weber LA 4050S
Thanks to its robust and compact design, the Legi-Air 4050 S is always ready for the most diverse of labeling tasks. The modular design of the Legi-Air 4050 S offers companies the flexibility of responding to changing labeling demands at any time. Legi-Air 4050 S system advantages at a glance Versatile application for labeling…
Thanks to its robust and compact design, the Legi-Air 4050 S is always ready for the most diverse of labeling tasks. The modular design of the Legi-Air 4050 S offers companies the flexibility of responding to changing labeling demands at any time.
Legi-Air 4050 S system advantages at a glance
- Versatile application for labeling of cartons, sacking and pallets on one side
- Labeling solution for fixed and variable product sizes
- High availability with label supply roll carrying up to 450 running meters
- Suited for 3-shift operation
- Robust system
- Excellent service life
Technical data
Printing technology
Thermal transfer or thermal direct
Print resolution
8 dots/mm (203 dpi)
12 dots/mm (300 dpi)
24 dots/mm (600 dpi)
Printing speed
up to 400 mm per second
Dispensing head sizes
Tamp-Blow standard from 12.5 x 7 to 20 000 mm2; depending on label quality, label lengths should be reduced
Label gap
minimum 3 mm
Label roll
300 mm outer diameter with up to 450 running meters, roll core 76 mm (3”), outside winding
Optional: inside winding, larger roll core diameter and 350 mm label roll outside diameter
Data interfaces
all conventional interfaces
Control interfaces
floating outputs (relay), opto-coupler inputs, M12 connections for photo cells and alarm lamps
Service intervals
as per interval display
Dispensing output
Up to 80 labels per minute; dispensing output depends on label size, text change and dispensing stroke
Position accuracy of the dispensed labels
Standard: up to ± 0.8 mm with stationary product (depends on distance of application, applicator type and label size) optional: ± 0.5 mm
Printing dispenser activation
Reflex sensor, light barrier, inductive or capacitive sensor, micro-switch, floating contacts (PLC)
Alarm system
Standard: Error message in text display, floating contacts (PLC), Optional: 3-color alarm lamp
Compressed air consumption
0.3 to 3 l per dispensing cycle, depending on label size, type of applicator and setting
Compressed air connection
6 bar, compressed air must be clean, dry and oil-free (DIN ISO 8573-1)
Weight
from 35 kg (depending on type)
Electrical connection
90 to 263 VAC, 50/60 Hz, 5 Amp
Ambient conditions
Temperature: 10°C to 35°C, 15% to 95% relative humidity, non-condensing
Certification
CE mark
Options
- RFID labeling
- Bad Tag discarding
- Quick-change label format head springloaded dispensing head
- 3-color alarm lamp
- Dust and spray water protected enclosure (also with heating) for application in particularly tough environmental conditions
- IPC in the protective enclosure
- Legitronic® label printing software
