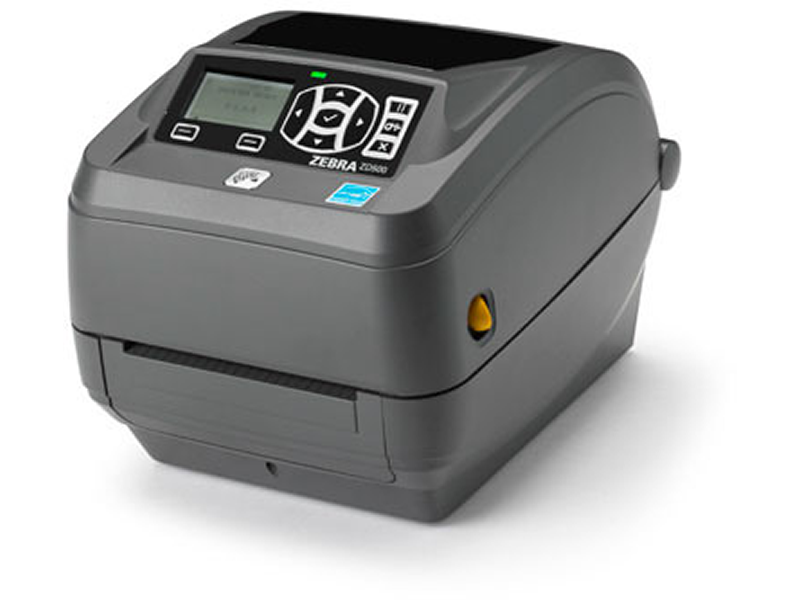

ZD500 Thermal Transfer Desktop Printer
Offering high-resolution print quality and quadruple connectivity options, the ZD500 is compact and feature-packed for top performance.
ZD500 Thermal Transfer Desktop Printer
A Link-OS-enabled printer, it is easy to integrate, manage and maintain from any location. Runs in direct thermal or thermal transfer mode.
ZD500™ performance desktop printers pair the fastest print speeds with the most complete feature set of our desktop printer lineup. Innovative label, receipt and tag-handling capabilities enable the flexibility your customers need. Offering top print quality and a variety of connectivity options, the GX420™, GX430™ and ZD500 printers support the widest range of applications and can be integrated into almost any environment so that your customers can improve efficiency and profitability, save time and reduce operator training.
| Print Width 4.09″/104 mmPrint Resolution 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)Maximum Speed 6″/152 mm per second (300 dpi) 4″/102 mm per second (203 dpi) |
Media Sensors Multi-position transmissive and full width reflective sensorCommunication Methods RS-232 auto-sensing Serial interface, DB-9 (standard) USB V2.0, bi-directional (standard) Centronics Parallel (standard), Ethernet – 10/100 internal (standard), Wireless – Dual radio 802.11a/b/g/n and Bluetooth 3.0 (optional) |
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
ZD500 Tech SpecsMarkoprint ZTV HP
